js+cavans實現圖片滑塊驗證
本文實例為大家分享了js+cavans實現圖片滑塊驗證的具體代碼，供大家參考，具體內容如下
js已封裝好，拿來即用，兼容pc端和移動端,
效果：

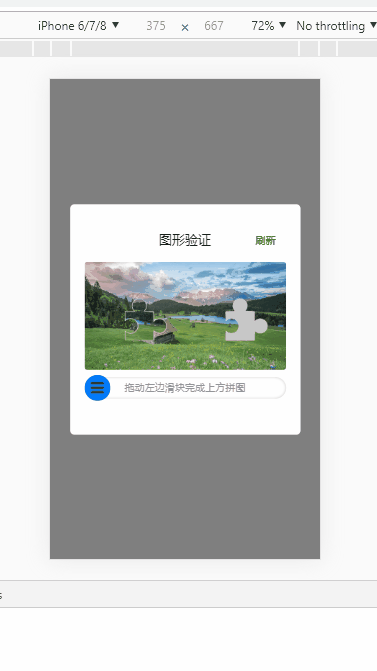

移動端：

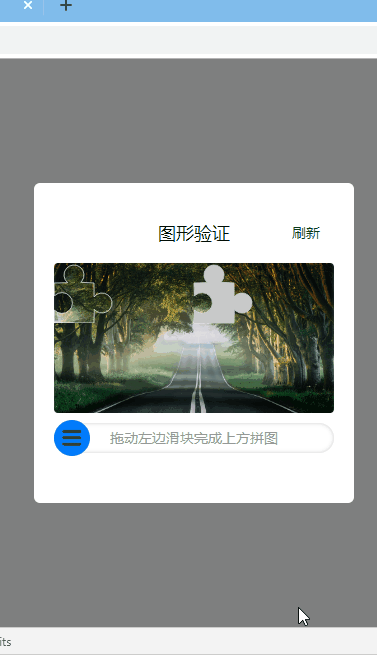

pc端：
原理就不解釋了，我之前的博客已經說過，只不過這個版本是結合了canvas實現，又兼容了pc端，直接拿代碼就能用了。
代碼：html
<!DOCTYPE html><html lang='en'> <head> <meta charset='UTF-8'> <meta name='viewport' content='width=device-width, initial-scale=1.0'> <meta http-equiv='X-UA-Compatible' content='ie=edge'> <title>Document</title> <style> * { margin: 0; padding: 0; } .sliderModel { position: fixed; left: 0; top: 0; width: 100%; height: 100%; background: rgba(0, 0, 0, 0.5); display: flex; justify-content: center; align-items: center; display: none; } .sliderModel .cont{padding: 20px; width: 280px; background: #fff;border-radius: 6px;margin: 50px auto;} .showMessage { text-align: center; font-size: 14px; height: 30px; line-height: 30px; } #canvas_wrap{ width: 280px; } #canvas_wrap canvas{ display: block; } </style></head> <body> <div class='sliderModel'> <div class='cont'> <div id='canvas_wrap'></div> <div class='showMessage'></div> </div> <div id='close'>關閉</div> </div> <div id='open'>打開</div></body><script src='http://www.hdgsjgj.cn/bcjs/newSlider.js'></script><script> function showMessage(msg,color){ var showMessage = document.querySelector(’.showMessage’); showMessage.innerHTML=msg; showMessage.style.color=color; } var obj={ el:’#canvas_wrap’, w:280, h:150, imgArr:[’images/sliderz/1.jpg’,’images/sliderz/2.jpg’,’images/sliderz/3.jpg’,’images/sliderz/4.jpg’], sliderIcon:’images/sliderz/sangangy.png’, refresh:function(){ showMessage(’’,’#333’) }, finish:function(e){ e? showMessage(’驗證成功!’,’green’) : showMessage(’驗證失敗,請重試’,’red’); } } document.querySelector(’#open’).onclick=function(){ //打開 document.querySelector(’.sliderModel’).style.display='block'; new window.$newSlider(obj); } document.querySelector(’#close’).onclick=function(){ //關閉 document.querySelector(’.sliderModel’).style.display='none'; }</script> </html>
newSlider.js:
(function(){ function slider(params){ var obj={ el:params.el, w:params.w || 280, //canvas的寬度 h:params.h || 150, //canvas的高度 range:params.range || 5, //相差多少像素內觸發成功 imgArr:params.imgArr || [], //圖片數組 sliderW:36, //slider的邊長 sliderIcon:params.sliderIcon || ’’, refresh:params.refresh, //刷新回調 finish:params.finish , //完成回調 }; //創建canvas的父元素 var container=document.querySelector(obj.el); container.innerHTML=’’; var canvas_wrap=document.createElement(’div’); canvas_wrap.className='canvas_wrap'; canvas_wrap.style.cssText='position:relative;overflow:hidden;border-radius:4px;width:'+obj.w+'px;height:'+obj.h+'px;background:#fff' //創建大小canvas元素 var bigCanvas=document.createElement(’canvas’); var smartCanvas=bigCanvas.cloneNode(true); bigCanvas.width=smartCanvas.width=obj.w; bigCanvas.height=smartCanvas.height=obj.h; bigCanvas.style.cssText=smartCanvas.style.cssText='position:absolute;left:0;top:0'; var bcxt=bigCanvas.getContext(’2d’),scxt=smartCanvas.getContext(’2d’),img=new Image(); //創建標題和刷新按鈕 var titleDom=document.createElement(’div’); var refreshDom=document.createElement(’div’); titleDom.className='slider_title'; refreshDom.className='slider_refresh'; titleDom.style.cssText='position:relative;width:'+obj.w+'+px;height:60px;text-align:center;font-size:18px; line-height:60px'; refreshDom.style.cssText='position:absolute;top:0;right:14px;font-size:14px;color:green;cursor: pointer'; titleDom.innerHTML='圖形驗證'; refreshDom.innerHTML='刷新'; //創建拖拽區域 var slider_wrap=document.createElement(’div’),slider=document.createElement(’div’),sliderCover=document.createElement(’div’); slider_wrap.className='slider_wrap'; slider.className='canvas_slider'; sliderCover.className='sliderCover'; slider_wrap.innerText='拖動左邊滑塊完成上方拼圖'; slider_wrap.style.cssText='width:'+obj.w+'px;height:30px; border-radius:30px;line-height:30px; position:relative;margin-top:10px;text-align:center;box-shadow: inset 0 0 4px #ccc;font-size: 14px;color:#999'; slider.style.cssText='cursor: pointer;position: absolute;left: 0;top: 50%;z-index: 2;height: '+obj.sliderW+'px;width: '+obj.sliderW+'px;background:rgb(0, 124, 255) url('+obj.sliderIcon+') no-repeat center;background-size: 60% 60%;border-radius: '+obj.sliderW+'px;line-height:'+obj.sliderW+'px;text-align:center;transform: translateY(-50%);'; sliderCover.style.cssText='position: absolute;left: 0;top:0;width:0;height:100%;background:#eee;border-radius:30px;' slider_wrap.appendChild(slider); slider_wrap.appendChild(sliderCover); canvas_wrap.appendChild(bigCanvas); canvas_wrap.appendChild(smartCanvas); titleDom.appendChild(refreshDom); container.appendChild(titleDom); container.appendChild(canvas_wrap); container.appendChild(slider_wrap); var canvasCoverL=0,startDownX=0,smartCanvasBL=0,sliderMaxRange=obj.w-obj.sliderW; /* canvasCoverL:隨機生成占位塊canvas的x軸位置 startDownX://鼠標按下時x軸位置 smartCanvasBL: 可移動canvas的left初始值 sliderMaxRange：slider可移動的最大距離 */ //生成canvas圖案 function creatCanvas(){ //重置初始值 canvasCoverL=0;startDownX=0;smartCanvasBL=0; slider.style.left = sliderCover.style.width = 0; var l= 40, //滑塊的正方形邊長，不包括小圓點 r = 10, //小圓點半徑 PI = Math.PI, sliderW=l+2*r, //滑塊邊長 rand=canvasSize(sliderW,r), //獲取隨機生成的x,y,left值 x = canvasCoverL= rand.x, //占位塊x軸 y = rand.y; //占位塊y軸 smartCanvasBL=rand.left; //先清空畫布 bcxt.clearRect(0, 0, obj.w, obj.h) scxt.clearRect(0, 0, obj.w, obj.h) smartCanvas.width=obj.w; var srcIndex=Math.floor(Math.random()*(obj.imgArr.length-1)); img.src=obj.imgArr[srcIndex]; draw(scxt,x,y,l,r,PI,’clip’); draw(bcxt,x,y,l,r,PI,’fill’); img.onload = function() { //一定要在onload里調用，否則canvas里不能放進圖片 bcxt.drawImage(img,0,0,obj.w,obj.h); scxt.drawImage(img,0,0,obj.w,obj.h); //裁剪滑塊長度 var ImageData = scxt.getImageData(x, y-2*r, sliderW, sliderW) smartCanvas.width = sliderW; smartCanvas.style.left=rand.left+'px'; scxt.putImageData(ImageData, 0, y-2*r) } obj.refresh && obj.refresh(); } //隨機生成canvas滑塊和占位塊，到左邊的距離和到頂部的距離 function canvasSize(cw,r){ // cw為占位塊和的寬度，r為繪制圓點的半徑 var random =Math.random(); var x=Math.floor(obj.w/2 + random*(obj.w/2 - cw)); //x為占位塊x坐標位置，保證占位塊始終在畫布的右半區域 var y=Math.floor(r*2+random*(obj.h - cw - r*2)); //y為占位塊y坐標位置,（值至少為小圓半徑的2倍才能完全顯示，因為繪制的原點是小正方形的左上角） var left =Math.floor(random*(obj.w/2 - cw)); //canvas滑塊的left值，這里的值范圍保證它始終在畫布的左半區域 return {x:x,y:y,left:left} } //繪制canvas滑塊和占位塊 function draw(ctx,x,y,l,r,PI,operation) { ctx.beginPath() ctx.moveTo(x, y) ctx.arc(x + l / 2, y - r + 2, r, 0.72 * PI, 2.26 * PI) ctx.lineTo(x + l, y) ctx.arc(x + l + r - 2, y + l / 2, r, 1.21 * PI, 2.78 * PI) ctx.lineTo(x + l, y + l) ctx.lineTo(x, y + l) ctx.arc(x + r - 2, y + l / 2, r + 0.4, 2.76 * PI, 1.24 * PI, true) ctx.lineTo(x, y) ctx.lineWidth = 1 ctx.fillStyle = ’rgba(200, 200, 200, 1)’ ctx.strokeStyle = ’rgba(255, 255, 255, 0.7)’ ctx.stroke() ctx[operation]() ctx.globalCompositeOperation = ’destination-over’ } //滑塊被按下 function moveStart(e){ var ev = e || window.event; startDownX = ev.touches!=undefined? ev.touches[0].clientX : ev.clientX; } //滑塊移動 function moveProcess(e){ var ev = e || window.event,downX = (ev.touches!=undefined)? ev.touches[0].clientX : (startDownX!=0? ev.clientX : 0),range=downX-startDownX; console.log(downX) var sliderRange= range<=0? 0 : (range<sliderMaxRange ? range : sliderMaxRange); slider.style.left=sliderRange+'px'; sliderCover.style.width=obj.sliderW/2 + sliderRange +'px'; smartCanvas.style.left=smartCanvasBL+sliderRange+'px'; } //停止滑動 function moveEnd(e){ var ev = e || window.event; ev.touches!=undefined? slider.ontouchmove=null : slider.onmousemove=null; var smartCanvasL= parseInt(smartCanvas.style.left); if(Math.abs(canvasCoverL - smartCanvasL) < obj.range){ obj.finish && obj.finish(true); }else{ obj.finish && obj.finish(false); var timer = null,step = 10; var sliderL = parseInt(slider.style.left) timer = setInterval(function () { sliderL -= step; step += 5; if (sliderL <= 0) { clearInterval(timer); sliderL = 0; slider.style.left = sliderCover.style.width = 0; smartCanvas.style.left = smartCanvasBL + 'px' } slider.style.left = sliderL + 'px'; sliderCover.style.width = sliderL+obj.sliderW/2 +'px'; smartCanvas.style.left = sliderL + smartCanvasBL+ 'px'; }, 20) } } //事件調用 creatCanvas(); refreshDom.onclick=refreshDom.ontouchstart=creatCanvas; slider.ontouchstart=function(){ moveStart(); this.ontouchmove=moveProcess; this.ontouchend=moveEnd; }; slider.onmousedown=function(){ moveStart(); this.onmousemove=moveProcess; this.onmouseup=moveEnd; }; } window.$newSlider=slider})()
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持好吧啦網。
