本文實例為大家分享了Android實現輪播圖片效果的具體代碼，供大家參考，具體內容如下

首先，將這些要輪播的圖片和一些文本分別放置在不同的數據集合中，程序啟動的時候默認顯示一組圖片和文本數據，然后啟動一個定時器，每隔一段時間便替換掉顯示的圖片和文本數據，同時加入一些動畫效果，已達到輪播的特效。同時，我們也要實現手指滑動圖片達到輪播的效果。

1、程序啟動界面MainActivity

public class MainActivity extends AppCompatActivity implements ImageBannerFramLayout.FramLayoutLisenner{ private ImageBannerFramLayout mGroup; private int[] ids = new int[] { R.drawable.i1,//圖片資源1 R.drawable.i2,//圖片資源2 }; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); //計算當前手機寬度 DisplayMetrics displayMetrics = new DisplayMetrics(); getWindowManager().getDefaultDisplay().getMetrics(displayMetrics); int width = displayMetrics.widthPixels; mGroup = (ImageBannerFramLayout) findViewById(R.id.image_group); mGroup.setLisenner(this); List<Bitmap> list = new ArrayList<>(); for (int i = 0; i < ids.length; i++) { Bitmap bitmap = BitmapFactory.decodeResource(getResources(),ids[i]); list.add(bitmap); } mGroup.addBitmaps(list); } @Override public void chickImageIndex(int pos) { Toast.makeText(this,'索引值 = ' + pos,Toast.LENGTH_SHORT).show(); }}

2、新建包view下面新建兩個類

1）新建ImageBarnnerViewGroup類繼承自ViewGroup

public class ImageBarnnerViewGroup extends ViewGroup { private int children;//我們View Group的子視圖總個數 private int childwidth;//子視圖的寬度 private int childheight;//子視圖的高度 private int x;//此時的x的值代表的是第一次按下的位置的橫坐標，每一次移動過的過程中 移動之前的位置橫坐標 private int index = 0;//代表名為每張圖片的索引 private Scroller scroller; /** * 利用一個單擊變量開關進行判斷，離開屏幕的一瞬間判斷用戶的操作是點擊 */ private boolean isClick;//true的時候點擊事件，false的時候不是點擊事件 private ImageBarnnerLister lister; private ImageBarnnerViewGroupLisnner barnnerViewGroupLisnner; public ImageBarnnerLister getLister() { return lister; } public void setLister(ImageBarnnerLister lister) { this.lister = lister; } public ImageBarnnerViewGroupLisnner getBarnnerViewGroupLisnner() { return barnnerViewGroupLisnner; } public void setBarnnerViewGroupLisnner(ImageBarnnerViewGroupLisnner barnnerViewGroupLisnner) { this.barnnerViewGroupLisnner = barnnerViewGroupLisnner; } public interface ImageBarnnerLister { void chickImageIndex(int pos);//pos代表的是我們當前的圖片的具體索引值 } /** * 實現輪播圖底部圓點切換效果 * 自定義一個繼承自FragmenLayou布局，利用FragmeLayout布局特性 */ //自動輪播 private boolean isAuto = true;//默認情況下開啟輪播 private Timer timer = new Timer(); private TimerTask timerTask; @SuppressLint('HandlerLeak') private android.os.Handler autohandler = new android.os.Handler() { @Override public void handleMessage(Message msg) { switch (msg.what) {case 0://我們需要圖片的自動輪播 if (++index >= children) {//如果是最后一張圖片，從第一張開始 index = 0; } scrollTo(childwidth * index,0); barnnerViewGroupLisnner.selectImage(index); break;default: } } }; private void startAuto() { isAuto = true; } private void stopAuto() { isAuto = false; } /** * 采用Timer，TimerTask，Handler三者結合的方式來實現自動輪播 */ public ImageBarnnerViewGroup(Context context) { super(context); initObj(); } public ImageBarnnerViewGroup(Context context, AttributeSet attrs) { super(context, attrs); initObj(); } public ImageBarnnerViewGroup(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) { super(context, attrs, defStyleAttr, defStyleRes); initObj(); } private void initObj() { scroller = new Scroller(getContext()); timerTask = new TimerTask() { @Override public void run() {if (isAuto) {//開啟輪播圖 autohandler.sendEmptyMessage(0);} } }; timer.schedule(timerTask,100,3000); } @Override public void computeScroll() { super.computeScroll(); if (scroller.computeScrollOffset()) { scrollTo(scroller.getCurrX(),0); invalidate();//重繪 } } @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { super.onMeasure(widthMeasureSpec, heightMeasureSpec); //1.求出子視圖的個數 children = getChildCount();//我們可以知道自試圖的個數 if (0 == children) { setMeasuredDimension(0,0); } else { measureChildren(widthMeasureSpec, heightMeasureSpec); //此時我們以第一個子視圖=為基準，也就是說我們的View Group View view = getChildAt(0); childwidth = view.getMeasuredWidth(); childheight = view.getMeasuredHeight(); int width = view.getMeasuredWidth() * children; setMeasuredDimension(width,childheight); } //2.測量子視圖的寬度和高度 //3.根據子視圖的狂賭和高度，求出該ViewGroup的寬度和高度 } @Override public boolean onInterceptTouchEvent(MotionEvent ev) { return super.onInterceptTouchEvent(ev); } /** * 用兩種方式來實現輪播圖的手動輪播 * 1，利用scrollTo，scrollBy 完成輪播圖的手動輪播 * 1，利用Scroller 對象完成輪播圖的手動效果 * @param event * @return */ @Override public boolean onTouchEvent(MotionEvent event) { switch (event.getAction()) { case MotionEvent.ACTION_DOWN://表示用戶按下的一瞬間stopAuto();//停止圖片輪播if (!scroller.isFinished()) { scroller.abortAnimation();}isClick = true;x=(int)event.getX();break; case MotionEvent.ACTION_MOVE://表示用戶按下之后在屏幕上移動的過程int moveX = (int) event.getX();int distance = moveX - x;scrollBy(-distance,0);x = moveX;isClick = false;break; case MotionEvent.ACTION_UP://標識的是用戶抬起的一瞬間int scrollX = getScrollX();index = (scrollX + childwidth / 2) / childwidth;if (index < 0) { //已經滑動到了最左邊 index = 0;} else if (index > children - 1) {//說明已經滑動到了最右邊 index = children - 1;} if (isClick) { //點擊事件 lister.chickImageIndex(index);} else { int dx = index * childwidth - scrollX; scroller.startScroll(scrollX,0,dx,0); postInvalidate(); barnnerViewGroupLisnner.selectImage(index);}startAuto();//開啟圖片輪播break; default: } return true; //返回true的目的是告訴該View Group容器的父View 我們已經處理好了該事件 } @Override protected void onLayout(boolean b, int i, int i1, int i2, int i3) { if (b) { int lefrMargin = 0; for (int j = 0; j < children; j++) {View view = getChildAt(j);view.layout(lefrMargin,0,lefrMargin + childwidth,childheight);lefrMargin += childwidth; } } } public interface ImageBarnnerViewGroupLisnner{ void selectImage(int index); }}

2）新建ImageBannerFramLayout類繼承自FrameLayout實現兩個接口

public class ImageBannerFramLayout extends FrameLayout implements ImageBarnnerViewGroup.ImageBarnnerViewGroupLisnner,ImageBarnnerViewGroup.ImageBarnnerLister{ private ImageBarnnerViewGroup imageBarnnerViewGroup; private LinearLayout linearLayout; private FramLayoutLisenner lisenner; public FramLayoutLisenner getLisenner() { return lisenner; } public void setLisenner(FramLayoutLisenner lisenner) { this.lisenner = lisenner; } public ImageBannerFramLayout(@NonNull Context context) { super(context); initImageBarnnerViewGroup(); initDotLinearlayout(); } public ImageBannerFramLayout(@NonNull Context context, @Nullable AttributeSet attrs) { super(context, attrs); initImageBarnnerViewGroup(); initDotLinearlayout(); } public ImageBannerFramLayout(@NonNull Context context, @Nullable AttributeSet attrs, int defStyleAttr) { super(context, attrs, defStyleAttr); initImageBarnnerViewGroup(); initDotLinearlayout(); } public void addBitmaps(List<Bitmap> list) { for (int i = 0; i < list.size(); i++) { Bitmap bitmap = list.get(i); addBitmapToImageBarnnerViewGroup(bitmap); addDotToLinearlayout(); } } private void addDotToLinearlayout() { ImageView iv = new ImageView(getContext()); LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(LinearLayout.LayoutParams.WRAP_CONTENT,LinearLayout.LayoutParams.MATCH_PARENT); layoutParams.setMargins(5,5,5,5); iv.setLayoutParams(layoutParams); iv.setImageResource(R.drawable.dot_normal); linearLayout.addView(iv); } private void addBitmapToImageBarnnerViewGroup(Bitmap bitmap) { ImageView imageView = new ImageView(getContext()); imageView.setScaleType(ImageView.ScaleType.CENTER_CROP); imageView.setLayoutParams(new ViewGroup.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT,ViewGroup.LayoutParams.WRAP_CONTENT)); imageView.setImageBitmap(bitmap); imageBarnnerViewGroup.addView(imageView); } //初始化自定義圖片輪播功能核心類 private void initImageBarnnerViewGroup() { imageBarnnerViewGroup = new ImageBarnnerViewGroup(getContext()); FrameLayout.LayoutParams layoutParams = new FrameLayout.LayoutParams(FrameLayout.LayoutParams.MATCH_PARENT, FrameLayout.LayoutParams.MATCH_PARENT); imageBarnnerViewGroup.setLayoutParams(layoutParams); imageBarnnerViewGroup.setBarnnerViewGroupLisnner(this);//將linsnner傳遞給Framlayout imageBarnnerViewGroup.setLister(this); addView(imageBarnnerViewGroup); } //初始化底部圓點布局 private void initDotLinearlayout() { linearLayout = new LinearLayout(getContext()); FrameLayout.LayoutParams layoutParams = new FrameLayout.LayoutParams(FrameLayout.LayoutParams.MATCH_PARENT, 40); linearLayout.setLayoutParams(layoutParams); linearLayout.setOrientation(LinearLayout.HORIZONTAL); linearLayout.setGravity(Gravity.CENTER); linearLayout.setBackgroundColor(Color.RED); addView(linearLayout); FrameLayout.LayoutParams layoutParams1 = (LayoutParams) linearLayout.getLayoutParams(); layoutParams.gravity = Gravity.BOTTOM; linearLayout.setLayoutParams(layoutParams1); if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.HONEYCOMB) { linearLayout.setAlpha(0.5f); } else { linearLayout.getBackground().setAlpha(100); } } @Override public void selectImage(int index) { int count = linearLayout.getChildCount(); for (int i = 0;i < count; i++) { ImageView iv = (ImageView) linearLayout.getChildAt(i); if (i == index) {iv.setImageResource(R.drawable.dot_select); } else {iv.setImageResource(R.drawable.dot_normal); } } } @Override public void chickImageIndex(int pos) { lisenner.chickImageIndex(pos); } public interface FramLayoutLisenner{ void chickImageIndex(int pos); }}

3、程序布局頁面activity_main

<?xml version='1.0' encoding='utf-8'?><RelativeLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:app='http://schemas.android.com/apk/res-auto' xmlns:tools='http://schemas.android.com/tools' android:layout_width='match_parent' android:layout_height='match_parent' tools:context='.MainActivity'> <com.example.tony.imagegroup.view.ImageBannerFramLayout android: android:layout_width='match_parent' android:layout_height='200dp'> </com.example.tony.imagegroup.view.ImageBannerFramLayout></RelativeLayout>

4、新建兩個drawable資源文件dot_normal.xml和dot_select.xml，實現輪播圖底部小圓點

不同的是前者顏色為白色后者為黑色

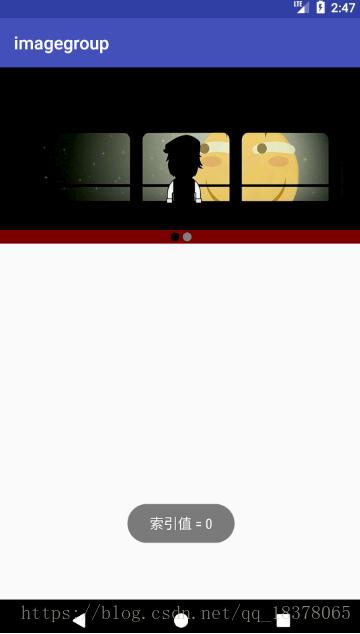

<?xml version='1.0' encoding='utf-8'?><shape xmlns:android='http://schemas.android.com/apk/res/android' android:shape='oval'> <solid android:color='@android:color/white'/> <size android: android: /></shape>三、運行結果

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持好吧啦網。
