本文實例為大家分享了python實現mean-shift聚類算法的具體代碼，供大家參考，具體內容如下

1、新建MeanShift.py文件

import numpy as np# 定義 預先設定 的閾值STOP_THRESHOLD = 1e-4CLUSTER_THRESHOLD = 1e-1# 定義度量函數def distance(a, b): return np.linalg.norm(np.array(a) - np.array(b))# 定義高斯核函數def gaussian_kernel(distance, bandwidth): return (1 / (bandwidth * np.sqrt(2 * np.pi))) * np.exp(-0.5 * ((distance / bandwidth)) ** 2)# mean_shift類class mean_shift(object): def __init__(self, kernel=gaussian_kernel): self.kernel = kernel def fit(self, points, kernel_bandwidth): shift_points = np.array(points) shifting = [True] * points.shape[0] while True: max_dist = 0 for i in range(0, len(shift_points)): if not shifting[i]: continue p_shift_init = shift_points[i].copy() shift_points[i] = self._shift_point(shift_points[i], points, kernel_bandwidth) dist = distance(shift_points[i], p_shift_init) max_dist = max(max_dist, dist) shifting[i] = dist > STOP_THRESHOLD if(max_dist < STOP_THRESHOLD): break cluster_ids = self._cluster_points(shift_points.tolist()) return shift_points, cluster_ids def _shift_point(self, point, points, kernel_bandwidth): shift_x = 0.0 shift_y = 0.0 scale = 0.0 for p in points: dist = distance(point, p) weight = self.kernel(dist, kernel_bandwidth) shift_x += p[0] * weight shift_y += p[1] * weight scale += weight shift_x = shift_x / scale shift_y = shift_y / scale return [shift_x, shift_y] def _cluster_points(self, points): cluster_ids = [] cluster_idx = 0 cluster_centers = [] for i, point in enumerate(points): if(len(cluster_ids) == 0): cluster_ids.append(cluster_idx) cluster_centers.append(point) cluster_idx += 1 else: for center in cluster_centers: dist = distance(point, center) if(dist < CLUSTER_THRESHOLD): cluster_ids.append(cluster_centers.index(center)) if(len(cluster_ids) < i + 1): cluster_ids.append(cluster_idx) cluster_centers.append(point) cluster_idx += 1 return cluster_ids

2、調用上述py文件

# -*- coding: utf-8 -*-'''Created on Tue Oct 09 11:02:08 2018@author: muli'''from sklearn.datasets.samples_generator import make_blobsimport matplotlib.pyplot as plt import randomimport numpy as npimport MeanShiftdef colors(n): ret = [] for i in range(n): ret.append((random.uniform(0, 1), random.uniform(0, 1), random.uniform(0, 1))) return retdef main(): centers = [[-1, -1], [-1, 1], [1, -1], [1, 1]] X, _ = make_blobs(n_samples=300, centers=centers, cluster_std=0.4) mean_shifter = MeanShift.mean_shift() _, mean_shift_result = mean_shifter.fit(X, kernel_bandwidth=0.5) np.set_printoptions(precision=3) print(’input: {}’.format(X)) print(’assined clusters: {}’.format(mean_shift_result)) color = colors(np.unique(mean_shift_result).size) for i in range(len(mean_shift_result)): plt.scatter(X[i, 0], X[i, 1], color = color[mean_shift_result[i]]) plt.show()if __name__ == ’__main__’: main()

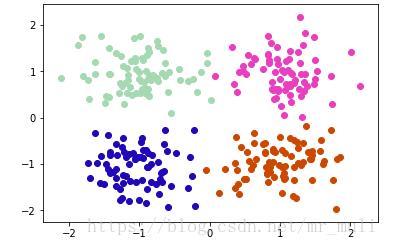

結果如圖所示：

參考鏈接

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持好吧啦網。
