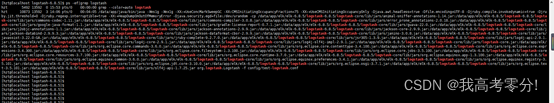

目錄一、安裝Logstash1.解壓tar包2.配置config目錄下的logstash.conf3.啟動命令4.查看Logstash是否啟動成功 二、配置應用項目的logback環境1.在pom.xml中添加Logstash依賴2.在resouces目錄下添加logback-spring.xml三、在kibana界面查看數據1.查看索引管理2.配置索引模式總結一、安裝Logstash1.解壓tar包cd /data/app/elk/elk-6.8.5tar zxvf logstash-6.8.5.tar.gz2.配置config目錄下的logstash.conf# 數據輸入部分input { # 讀取nginx訪問日志 file {#path：監聽文件的路徑,絕對路徑path => '/data/app/nginx/logs/access.log' #為Nginx的access.log路徑# 格式：jsoncodec => 'json'#start_position:監聽文件的起始位置，beginning：從文件的頭開始讀取start_position => 'beginning'#type：自定義類型type => 'nginx-access-log' } # 讀取nginx異常日志 file {path => '/data/app/nginx/logs/error.log' #為Nginx的error.log路徑# 格式：plain,輸入的是字符串，輸出把全部內容放到message字段codec => 'plain'start_position => 'beginning'type => 'nginx-error-log' }#filebeats方式beats {port => 5044type => 'beats_log'}#自定義端口，一個項目可對應一個自定義tcp端口接收數據tcp {mode => 'server'host => '192.168.X.X' #IP地址port => 21022codec => jsontype => 'application-log' #application一般為項目名稱}}# 數據處理部分filter{if[type] == 'application-log'{mutate {rename => {'host' => 'hostname'}}}}# 數據輸出部分output { # beat監控信息if [type] == 'beats_log'{elasticsearch { hosts => ['192.168.X.X:9200']manage_template => falseindex => '%{[@metadata][beat]}-%{[@metadata][version]}-%{+YYYY.MM.dd}' user => 'elastic' password => 'elastic2021'}} # nginx訪問日志 if[type] == 'nginx-access-log' {elasticsearch { hosts => ['192.168.X.X:9200'] index => 'nginx-access-log-%{+YYYY.MM.dd}' # elasticsearch的用戶名、密碼 user => 'elastic' password => 'elastic2021'} } # nginx異常日志 if[type] == 'nginx-error-log'{elasticsearch{ hosts => ['192.168.X.X:9200'] index => 'nginx-error-log-%{+YYYY.MM.dd}' user => 'elastic' password => 'elastic2021'} }# 應用系統日志if[type] == 'application-log'{elasticsearch {hosts => ['192.168.X.X:9200'] index => 'application-log-%{+YYYY.MM.dd}'user => 'elastic'password => 'elastic2021'}}}3.啟動命令cd /data/app/elk/elk-6.8.5/logstash-6.8.5nohup ./bin/logstash -f config/logstash.conf &4.查看Logstash是否啟動成功ps -ef | grep logstash

二、配置應用項目的logback環境1.在pom.xml中添加Logstash依賴<!-- logstash 6.2 --><dependency> <groupId>net.logstash.logback</groupId> <artifactId>logstash-logback-encoder</artifactId> <version>6.2</version></dependency>2.在resouces目錄下添加logback-spring.xml<?xml version='1.0' encoding='UTF-8' ?><configuration debug='false'><!-- 為logstash輸出的JSON格式的Appender --><appender name='logstash_dev' class='net.logstash.logback.appender.LogstashTcpSocketAppender'><destination>192.168.X.X:21021</destination><!-- 日志輸出編碼 --><encoderclass='net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder'><providers><timestamp><timeZone>UTC</timeZone></timestamp><pattern><pattern>{'severity': '%level','service': '${APP_NAME:-}','trace': '%X{X-B3-TraceId:-}','span': '%X{X-B3-SpanId:-}','parent': '%X{X-B3-ParentSpanId:-}','exportable': '%X{X-Span-Export:-}','pid': '${PID:-}','thread': '%thread','class': '%logger','rest': '%message'}</pattern></pattern></providers></encoder></appender><!-- 開發環境 --> <springProfile name='develop'><!--設置根日志級別--><root level='INFO'> <appender-ref ref='logstash_dev'/></root> </springProfile></configuration>三、在kibana界面查看數據

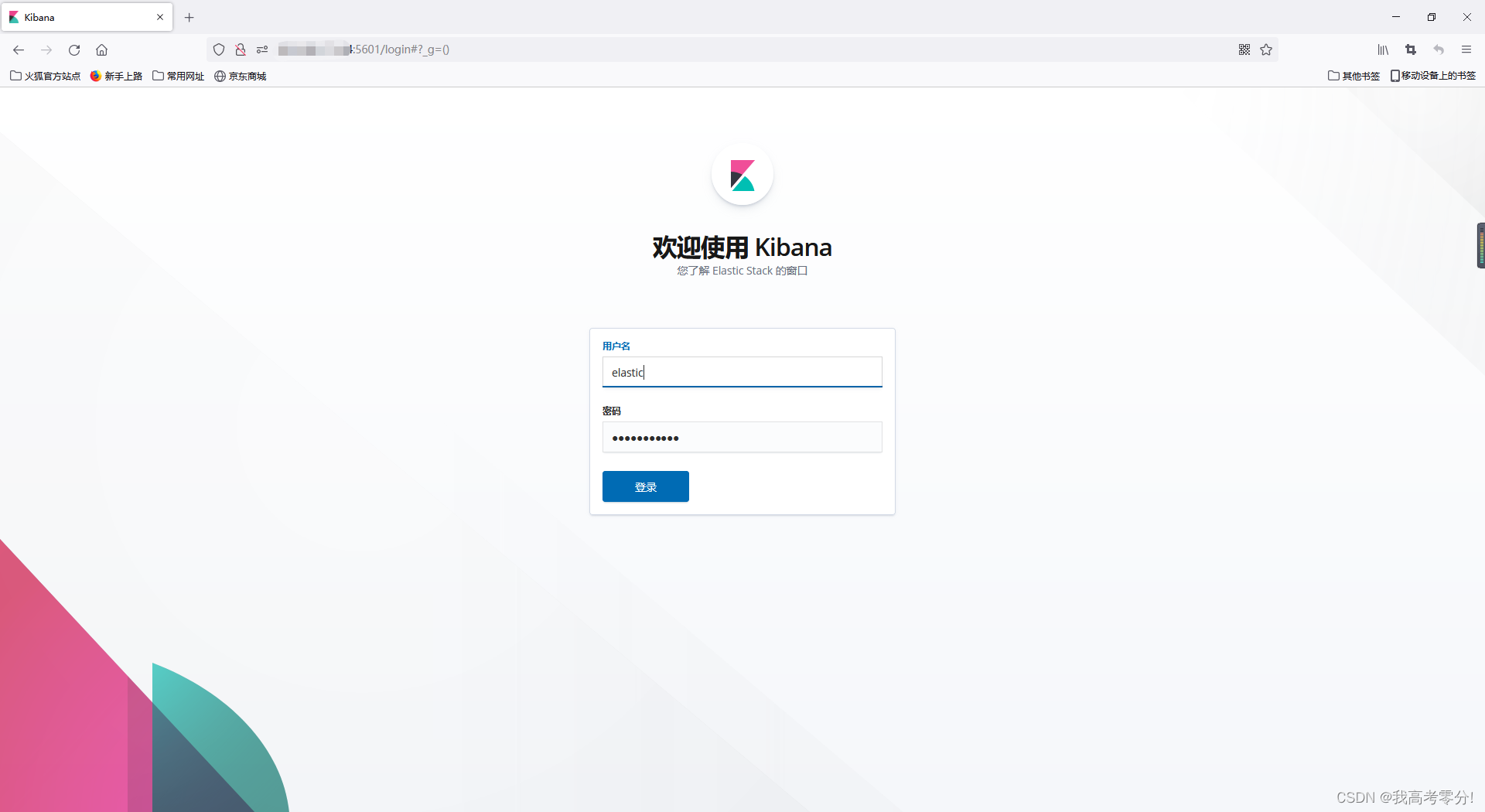

瀏覽器訪問192.168.X.X:5601

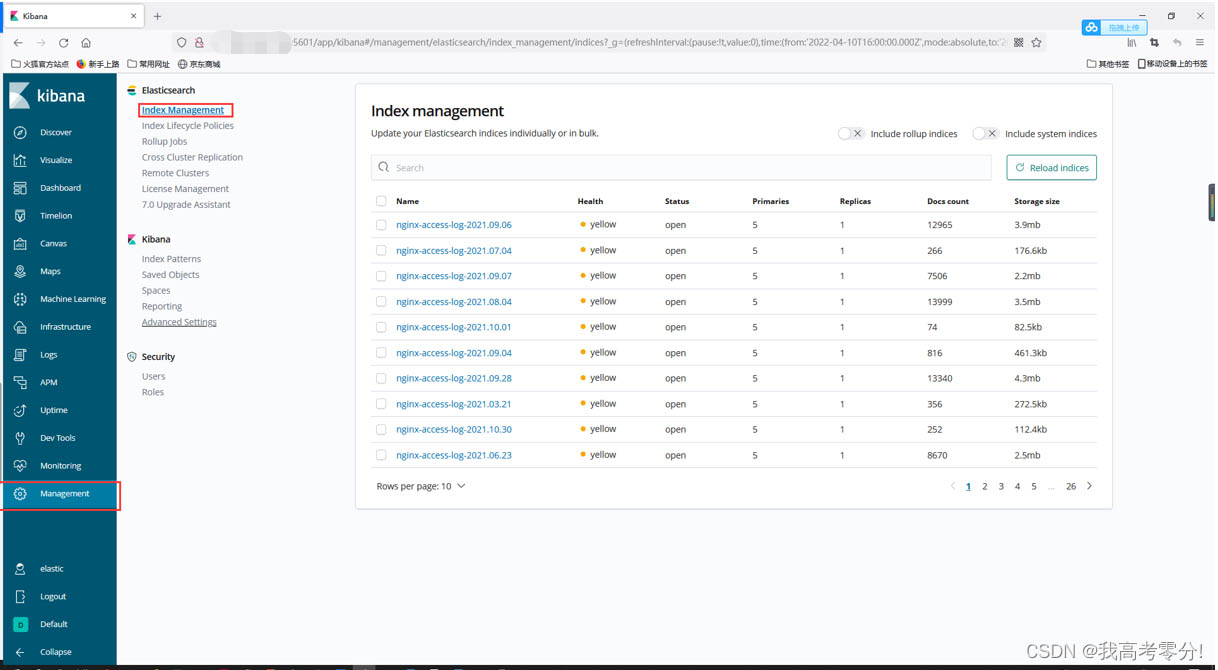

1.查看索引管理

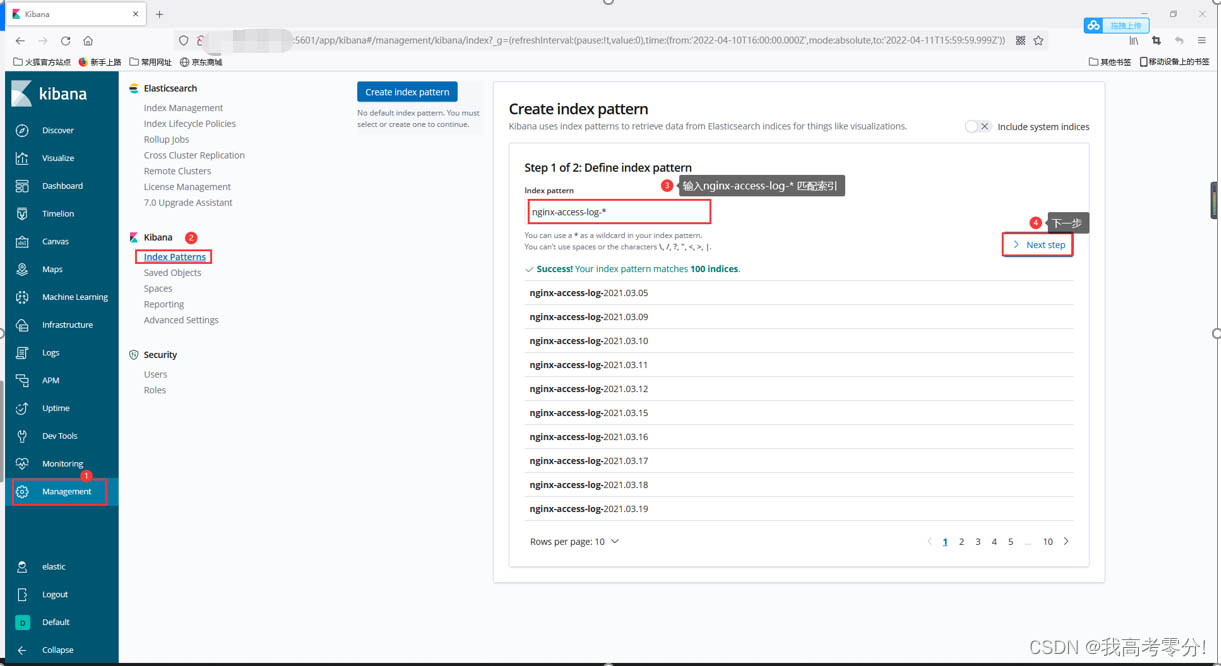

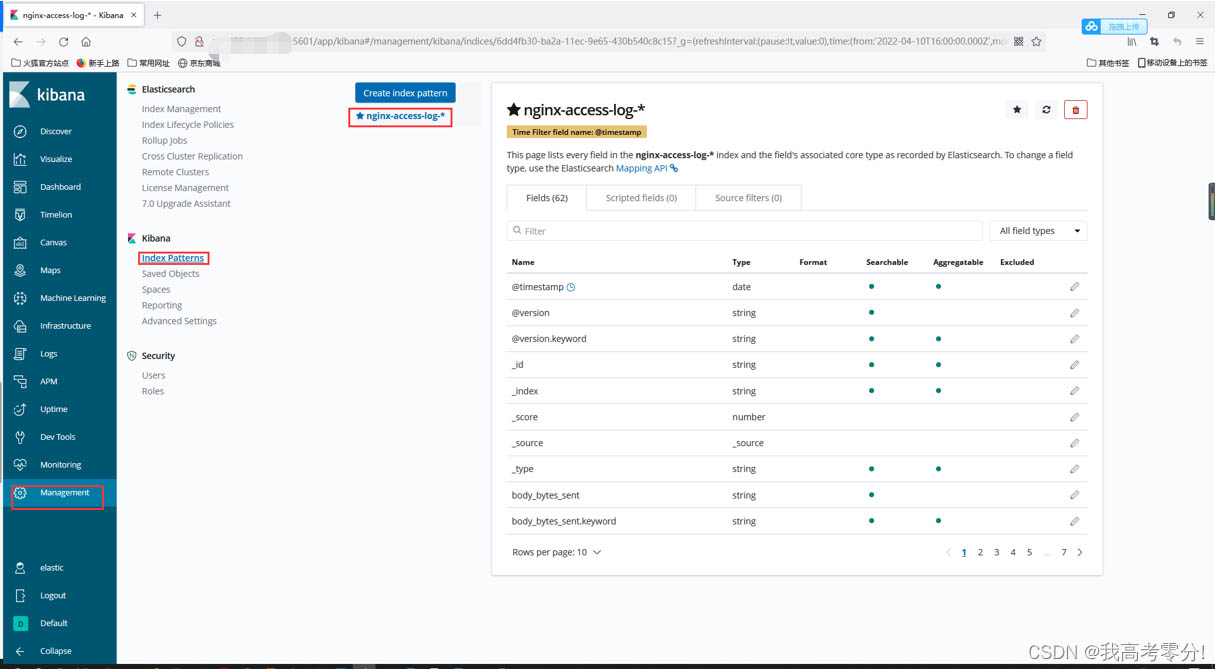

2.配置索引模式

總結

以上為個人經驗，希望能給大家一個參考，也希望大家多多支持好吧啦網。
