Oracle縮表空間的完整解決實例

瀏覽:95日期:2023-03-12 15:25:27
目錄
  • 備注:
  • 一. 需求
  • 二. 解決方案
    • 2.1 清理過期數據
    • 2.2 收縮表空間
    • 2.3 清理表碎片
    • 2.4 直接把相關的表drop掉
    • 2.5 把該表空間下其它的表移出此表空間
  • 總結

    備注:

    Oracle 11.2.0.4

    一. 需求

    近期有一個日志庫,占用了比較多的空間,需要將歷史的清理,然后收縮空間。

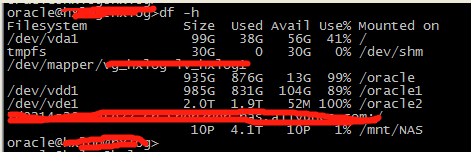

    如下圖所示,4T的空間已經差不多用完。

    二. 解決方案

    首先想到的是清理掉超過半年的數據,然后resize 表空間。

    2.1 清理過期數據

    因為業務的表是 tablename_yearmonth格式,例如 log_202204,每個月一個表,所以直接進行truncate即可。

    找到大表:

    select t.segment_name,t.BYTES/1024/1024/1024 GB,t.segment_typefrom user_segments twhere t.segment_type in ("TABLE","TABLE PARTITION")order by nvl(t.BYTES/1024/1024/1024,0) desc;

    truncate 大表:

    select  "truncate table "|| t.TABLE_NAME ||";"  from user_tables t where t.TABLE_NAME  like "LOG%";

    2.2 收縮表空間

    select a.tablespace_name,a.file_name,a.totalsize as totalsize_MB,b.freesize as freesize_MB,"ALTER DATABASE DATAFILE """ || a.file_name || """ RESIZE " ||round((a.totalsize - b.freesize) + 200) || "M;" as "alter datafile"from (select a.file_name,a.file_id,a.tablespace_name,a.bytes / 1024 / 1024 as totalsizefrom dba_data_files a) a,(select b.tablespace_name,b.file_id,sum(b.bytes / 1024 / 1024) as freesizefrom dba_free_space bgroup by b.tablespace_name, b.file_id) bwhere a.file_id = b.file_idand b.freesize > 100and a.tablespace_name  in ("TBS_LOG_DATA")order by a.tablespace_name

    將上一步的 alter datafile語句拷貝出來執行:

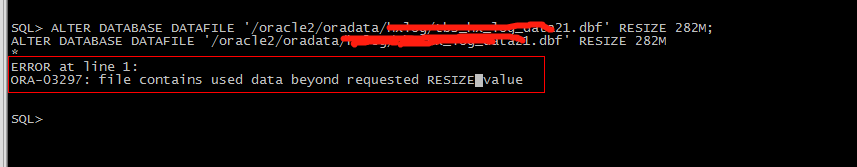

    有部分報錯:

    ORA-03297: file contains used data beyond requested RESIZE value

    2.3 清理表碎片

    因為我使用的是truncate,理論上不會受高水位的影響,在網上找了幾個博客,也是說要降低表的高水位,清理表碎片。

    select "alter table "||t.TABLE_NAME||" enable row movement;",       "alter table "||t.TABLE_NAME||" shrink space cascade;"  from user_tables t where t.TABLE_NAME like "LOG%";

    清理完碎片之后,重新執行,依舊報錯。

    2.4 直接把相關的表drop掉

    select  "drop table "|| t.TABLE_NAME ||"purge;"  from user_tables t where t.TABLE_NAME  like "LOG%";

    drop掉表之后,重新執行,依舊報錯。

    2.5 把該表空間下其它的表移出此表空間

    萬能的itpub上有個博客:

    Truncate table 或者 drop table 收縮數據文件,經常遇到ORA-03297: file contains used data beyond requested RESIZE value 查詢dba_free_space 也有空閑空間。經過查詢MOS(Doc ID 1029252.6)得知

    If you have a large extent in the middle of a datafile, and some object taking up room at the end of the datafile, you can use the query FINDEXT.SQL below to find this object. If you export this object, then drop it, you should then free up contiguous space at the end of your datafile so you will be able to resize it smaller.

    Make sure you leave enough room in the datafile for importing the object back into the tablespace.

    意思是說如果空閑的extent如果在文件的中間,此時無法進行resize ,必須把尾部的object drop 然后重建 再resize datafile。以下是本人做的測試;

    ?[oracle@bogon ~]$ sqlplus / as sysdbaSQL*Plus: Release 10.2.0.1.0 - Production on Wed Jul 31 11:10:41 2013Copyright (c) 1982, 2005, Oracle. ?All rights reserved.Connected to:Oracle Database 10g Enterprise Edition Release 10.2.0.1.0 - 64bit ProductionWith the Partitioning, OLAP and Data Mining optionsSQL> create tablespace test2 datafile "/u01/app/oracle/oradata/orcl/test2.dbf" size 10M autoextend on next 1M;Tablespace created.SQL> create table tab1 tablespace test2 as select * from dba_objects;Table created.SQL> select file#,name,bytes/1024/1024 bytes from v$datafile where name like "%test2%";FILE# NAME ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? BYTES----- ------------------------------------------------------------ -----? ?23 /u01/app/oracle/oradata/orcl/test2.dbf ? ? ? ? ? ? ? ? ? ? ? ? ?11SQL> create table tab2 tablespace test2 as select * from dba_objects;Table created.SQL> select file#,name,bytes/1024/1024 bytes from v$datafile where name like "%test2%";FILE# NAME ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? BYTES----- ------------------------------------------------------------ -----? ?23 /u01/app/oracle/oradata/orcl/test2.dbf ? ? ? ? ? ? ? ? ? ? ? ? ?21SQL> select SEGMENT_NAME,FILE_ID,EXTENT_ID,BLOCK_ID,blocks from dba_extents where file_id=23 order by BLOCK_ID;SEGMENT_NA ? ?FILE_ID ?EXTENT_ID ? BLOCK_ID ? ? BLOCKS---------- ---------- ---------- ---------- ----------TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?0 ? ? ? ? ?9 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?1 ? ? ? ? 17 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?2 ? ? ? ? 25 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?3 ? ? ? ? 33 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?4 ? ? ? ? 41 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?5 ? ? ? ? 49 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?6 ? ? ? ? 57 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?7 ? ? ? ? 65 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?8 ? ? ? ? 73 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? ?9 ? ? ? ? 81 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 10 ? ? ? ? 89 ? ? ? ? ?8SEGMENT_NA ? ?FILE_ID ?EXTENT_ID ? BLOCK_ID ? ? BLOCKS---------- ---------- ---------- ---------- ----------TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 11 ? ? ? ? 97 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 12 ? ? ? ?105 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 13 ? ? ? ?113 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 14 ? ? ? ?121 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 15 ? ? ? ?129 ? ? ? ? ?8TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 16 ? ? ? ?137 ? ? ? ?128TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 17 ? ? ? ?265 ? ? ? ?128TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 18 ? ? ? ?393 ? ? ? ?128TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 19 ? ? ? ?521 ? ? ? ?128TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 20 ? ? ? ?649 ? ? ? ?128TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 21 ? ? ? ?777 ? ? ? ?128SEGMENT_NA ? ?FILE_ID ?EXTENT_ID ? BLOCK_ID ? ? BLOCKS---------- ---------- ---------- ---------- ----------TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 22 ? ? ? ?905 ? ? ? ?128TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 23 ? ? ? 1033 ? ? ? ?128TAB1 ? ? ? ? ? ? ? 23 ? ? ? ? 24 ? ? ? 1161 ? ? ? ?128TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?0 ? ? ? 1289 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?1 ? ? ? 1297 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?2 ? ? ? 1305 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?3 ? ? ? 1313 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?4 ? ? ? 1321 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?5 ? ? ? 1329 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?6 ? ? ? 1337 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?7 ? ? ? 1345 ? ? ? ? ?8SEGMENT_NA ? ?FILE_ID ?EXTENT_ID ? BLOCK_ID ? ? BLOCKS---------- ---------- ---------- ---------- ----------TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?8 ? ? ? 1353 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? ?9 ? ? ? 1361 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 10 ? ? ? 1369 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 11 ? ? ? 1377 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 12 ? ? ? 1385 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 13 ? ? ? 1393 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 14 ? ? ? 1401 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 15 ? ? ? 1409 ? ? ? ? ?8TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 16 ? ? ? 1417 ? ? ? ?128TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 17 ? ? ? 1545 ? ? ? ?128TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 18 ? ? ? 1673 ? ? ? ?128SEGMENT_NA ? ?FILE_ID ?EXTENT_ID ? BLOCK_ID ? ? BLOCKS---------- ---------- ---------- ---------- ----------TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 19 ? ? ? 1801 ? ? ? ?128TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 20 ? ? ? 1929 ? ? ? ?128TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 21 ? ? ? 2057 ? ? ? ?128TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 22 ? ? ? 2185 ? ? ? ?128TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 23 ? ? ? 2313 ? ? ? ?128TAB2 ? ? ? ? ? ? ? 23 ? ? ? ? 24 ? ? ? 2441 ? ? ? ?128

    50 rows selected.

    Block_id 是連續的

    SQL> truncate table tab1? 2 ?;Table truncated.SQL> select * from dba_free_space where file_id=23;TABLESPACE_NAME ? ? ? ? FILE_ID ? BLOCK_ID ? ? ?BYTES ? ? BLOCKS RELATIVE_FNO-------------------- ---------- ---------- ---------- ---------- ------------TEST2 ? ? ? ? ? ? ? ? ? ? ? ?23 ? ? ? ? 17 ########## ? ? ? 1272 ? ? ? ? ? 23TEST2 ? ? ? ? ? ? ? ? ? ? ? ?23 ? ? ? 2569 ########## ? ? ? ?120 ? ? ? ? ? 23

    有原來tab1 的free blocks 1272

    SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M;alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M*ERROR at line 1:ORA-03297: file contains used data beyond requested RESIZE value

    無法進行resize

    下面把tab1 drop 再測試

    SQL> drop table tab1 purge;Table dropped.SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M;alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M*ERROR at line 1:ORA-03297: file contains used data beyond requested RESIZE value

    依然報錯

    然后truncate tab2 再進行測試

    SQL> truncate table tab2;Table truncated.SQL> select * from dba_free_space where file_id=23;TABLESPACE_NAME ? ? ? ? FILE_ID ? BLOCK_ID ? ? ?BYTES ? ? BLOCKS RELATIVE_FNO-------------------- ---------- ---------- ---------- ---------- ------------TEST2 ? ? ? ? ? ? ? ? ? ? ? ?23 ? ? ? ? ?9 ########## ? ? ? 1280 ? ? ? ? ? 23TEST2 ? ? ? ? ? ? ? ? ? ? ? ?23 ? ? ? 1297 ########## ? ? ? 1392 ? ? ? ? ? 23SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M;Database altered.SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 6M;alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 6M*ERROR at line 1:ORA-03297: file contains used data beyond requested RESIZE value

    此時只能收縮 tab2 的空間 但是不能收縮 tab1的空間

    然后再drop tab2

    SQL> drop table tab2 purge? 2 ?;Table dropped.SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 6M;Database altered.SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 1M;Database altered.

    可以收縮tab1的空間

    note:

    收縮數據文件和兩個因素有關

    1 降低高水位

    2 free extent在datafile 的尾部

    本篇文章直接解釋了第二個

    如果空閑的extent如果在文件的中間,此時無法進行resize ,必須把尾部的object drop 然后重建 再resize datafile。

    也就是說同時期該用戶下其它表的寫入,也在這個數據文件下,那么就不能進行resize。

    把其它表移動到users表空間:

    select "alter index "||index_NAME||" rebuild tablespace users;" from user_indexes where TABLE_NAME not like "LOG_%";select "alter table "||TABLE_NAME||" move tablespace users;" from user_tables where TABLE_NAME not like "LOG_%";

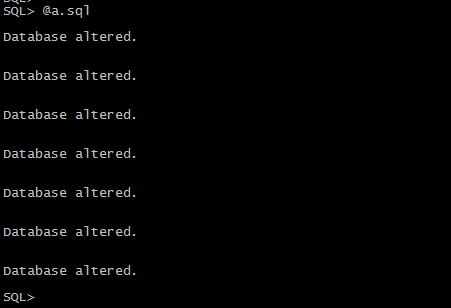

    再次運行壓縮空間,成功

    2.6 查看壓縮的空間

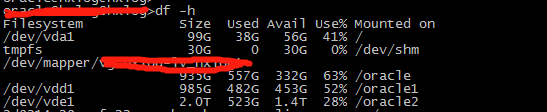

    可以看到一下子多出了2.1T 的空間

    收縮空間運行速度還不錯,50多個數據文件,幾分鐘就壓縮完成。

    總結

    到此這篇關于Oracle縮表空間的文章就介紹到這了,更多相關Oracle縮表空間內容請搜索以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持!
