使用IDEA搭建SSM框架的詳細教程(spring + springMVC +MyBatis)
Spring
SpringMVC
MyBatis
2 所需工具Mysql 8.0.15
數據庫管理系統，創建數據庫
Tomcat 8.5.51
用于部署web項目
Maven 3.6.1
項目構建、項目依賴管理
lombok 1.18.10（可用可不用工具）
用于類注解創建setter、getter、無參構造、全參構造、toString等函數
注：只導入依賴，不安裝插件是不起作用的

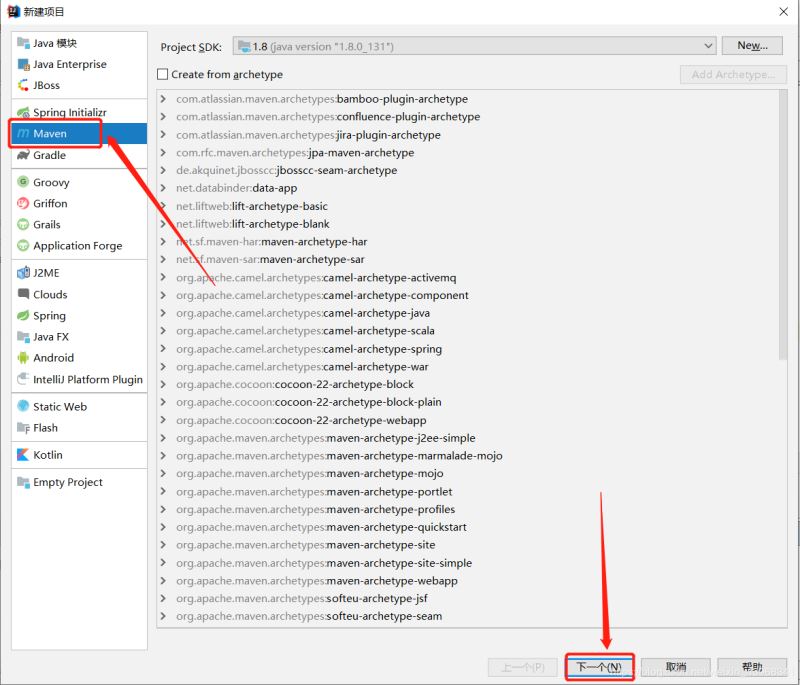

3 搭建步驟3.1 新建一個空Maven項目，填寫項目相關信息，完成

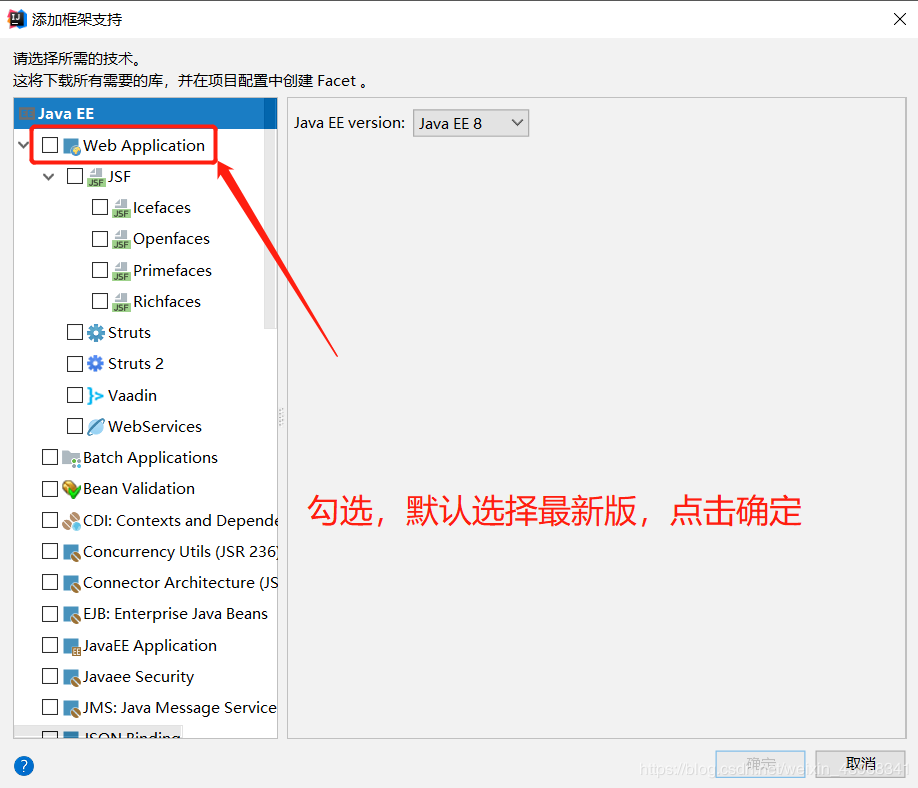

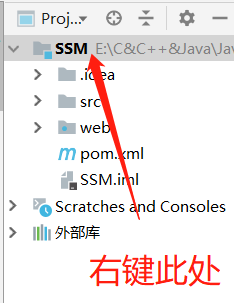

3.2 添加web框架支持
選擇現有框架支持
3.3 pom.xml導入依賴,設置Maven資源過濾
<!--導入依賴--><dependencies> <!--Junit--> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> </dependency> <!--數據庫驅動--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>8.0.15</version> </dependency> <!-- 數據庫連接池 --> <dependency> <groupId>com.mchange</groupId> <artifactId>c3p0</artifactId> <version>0.9.5.2</version> </dependency> <!--Servlet - JSP --> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>2.5</version> </dependency> <dependency> <groupId>javax.servlet.jsp</groupId> <artifactId>jsp-api</artifactId> <version>2.2</version> </dependency> <dependency> <groupId>javax.servlet</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <!--Mybatis--> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.5.2</version> </dependency> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>2.0.2</version> </dependency> <!--Spring--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>5.1.9.RELEASE</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>5.1.9.RELEASE</version> </dependency> <!--lombok--> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>1.18.10</version> </dependency></dependencies><!--靜態資源導出問題--><build> <resources> <resource> <directory>src/main/java</directory> <includes> <include>**/*.properties</include> <include>**/*.xml</include> </includes> <filtering>false</filtering> </resource> <resource> <directory>src/main/resources</directory> <includes> <include>**/*.properties</include> <include>**/*.xml</include> </includes> <filtering>false</filtering> </resource> </resources></build>
3.4 編寫MyBatis-config.xml（核心配置文件）
<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE configuration PUBLIC '-//mybatis.org//DTD Config 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-config.dtd'><configuration> <!--設置運行日志--> <settings> <setting name='logImpl' value='STDOUT_LOGGING'/> </settings> <!--取別名--> <typeAliases> <package name='com.pojo'/> </typeAliases> <!--綁定mapper，根據自己的項目設置--> <mappers> <mapper resource='com/dao/Mapper.xml'/> </mappers></configuration>
3.5 編寫database.properties（數據庫配置文件）
jdbc.driver=com.mysql.cj.jdbc.Driverjdbc.url=jdbc:mysql://localhost:3306/數據庫名?useSSL=true&useUnicode=true&characterEncoding=utf8jdbc.username=數據庫用戶名jdbc.password=數據庫密碼
根據自己的MySQL以及項目實際使用的數據庫來修改設置
注：MySQL8.0以上驅動得使用com.mysql.cj.jdbc.Driver
3.6 編寫Spring-dao.xml（Spring整合MyBatis配置文件）
<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:context='http://www.springframework.org/schema/context' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd'> <!-- 配置整合mybatis --> <!-- 1.關聯數據庫文件 --> <context:property-placeholder location='classpath:database.properties'/> <!-- 2.數據庫連接池 --> <!--數據庫連接池 dbcp 半自動化操作 不能自動連接 c3p0 自動化操作（自動的加載配置文件 并且設置到對象里面） --> <bean class='com.mchange.v2.c3p0.ComboPooledDataSource'> <!-- 配置連接池屬性 --> <property name='driverClass' value='${jdbc.driver}'/> <property name='jdbcUrl' value='${jdbc.url}'/> <property name='user' value='${jdbc.username}'/> <property name='password' value='${jdbc.password}'/> <!-- c3p0連接池的私有屬性 --> <property name='maxPoolSize' value='30'/> <property name='minPoolSize' value='10'/> <!-- 關閉連接后不自動commit --> <property name='autoCommitOnClose' value='false'/> <!-- 獲取連接超時時間 --> <property name='checkoutTimeout' value='10000'/> <!-- 當獲取連接失敗重試次數 --> <property name='acquireRetryAttempts' value='2'/> </bean> <!-- 3.配置SqlSessionFactory對象 --> <bean class='org.mybatis.spring.SqlSessionFactoryBean'> <!-- 注入數據庫連接池 --> <property name='dataSource' ref='dataSource'/> <!-- 配置MyBaties全局配置文件:MyBatis-config.xml --> <property name='configLocation' value='classpath:MyBatis-config.xml'/> </bean> <!-- 4.配置掃描Dao接口包，動態實現Dao接口注入到spring容器中 --> <!--解釋 ：https://www.cnblogs.com/jpfss/p/7799806.html--> <bean class='org.mybatis.spring.mapper.MapperScannerConfigurer'> <!-- 注入sqlSessionFactory --> <property name='sqlSessionFactoryBeanName' value='sqlSessionFactory'/> <!-- 給出需要掃描Dao接口包 --> <property name='basePackage' value='com.dao'/> </bean></beans>
3.7 編寫Spring-service.xml（Spring整合service層）
<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:context='http://www.springframework.org/schema/context' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd'> <!-- 掃描service相關的bean --> <context:component-scan base-package='com.service' /> <!--ServiceImpl注入到IOC容器中，此處需要修改成自己的--> <bean class='com.service.ServiceImpl'> <property name='Mapper' ref='Mapper'/> </bean> <!-- 配置事務管理器 --> <bean class='org.springframework.jdbc.datasource.DataSourceTransactionManager'> <!-- 注入數據庫連接池 --> <property name='dataSource' ref='dataSource' /> </bean></beans>
3.8 修改web.xml文件
<?xml version='1.0' encoding='UTF-8'?><web-app xmlns='http://xmlns.jcp.org/xml/ns/javaee' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd' version='4.0'> <!--DispatcherServlet--> <servlet> <servlet-name>DispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <!--一定要注意:我們這里加載的是總的配置文件，之前被這里坑了！--> <param-value>classpath:applicationContext.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>DispatcherServlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!--encodingFilter--> <filter> <filter-name>encodingFilter</filter-name> <filter-class> org.springframework.web.filter.CharacterEncodingFilter </filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!--Session過期時間--> <session-config> <session-timeout>15</session-timeout> </session-config></web-app>
3.9 編寫Spring-mvc.xml
<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:context='http://www.springframework.org/schema/context' xmlns:mvc='http://www.springframework.org/schema/mvc' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd'> <!-- 配置SpringMVC --> <!-- 1.開啟SpringMVC注解驅動 --> <mvc:annotation-driven /> <!-- 2.靜態資源默認servlet配置--> <mvc:default-servlet-handler/> <!-- 3.配置jsp 顯示ViewResolver視圖解析器 --> <bean class='org.springframework.web.servlet.view.InternalResourceViewResolver'> <property name='viewClass' value='org.springframework.web.servlet.view.JstlView' /> <!--此處注意路徑問題,/WEB-INF/jsp/--> <property name='prefix' value='/WEB-INF/jsp/' /> <property name='suffix' value='.jsp' /> </bean> <!-- 4.掃描web相關的bean --> <context:component-scan base-package='com.controller' /></beans>
3.10 編寫applicationContext.xml（Spring配置整合文件）
<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd'> <!--將Spring其他配置文件整合到一個總的配置文件，用的時候使用這個配置文件--> <import resource='classpath:Spring-service.xml'/> <import resource='classpath:Spring-dao.xml'/> <import resource='classpath:Spring-mvc.xml'/></beans>

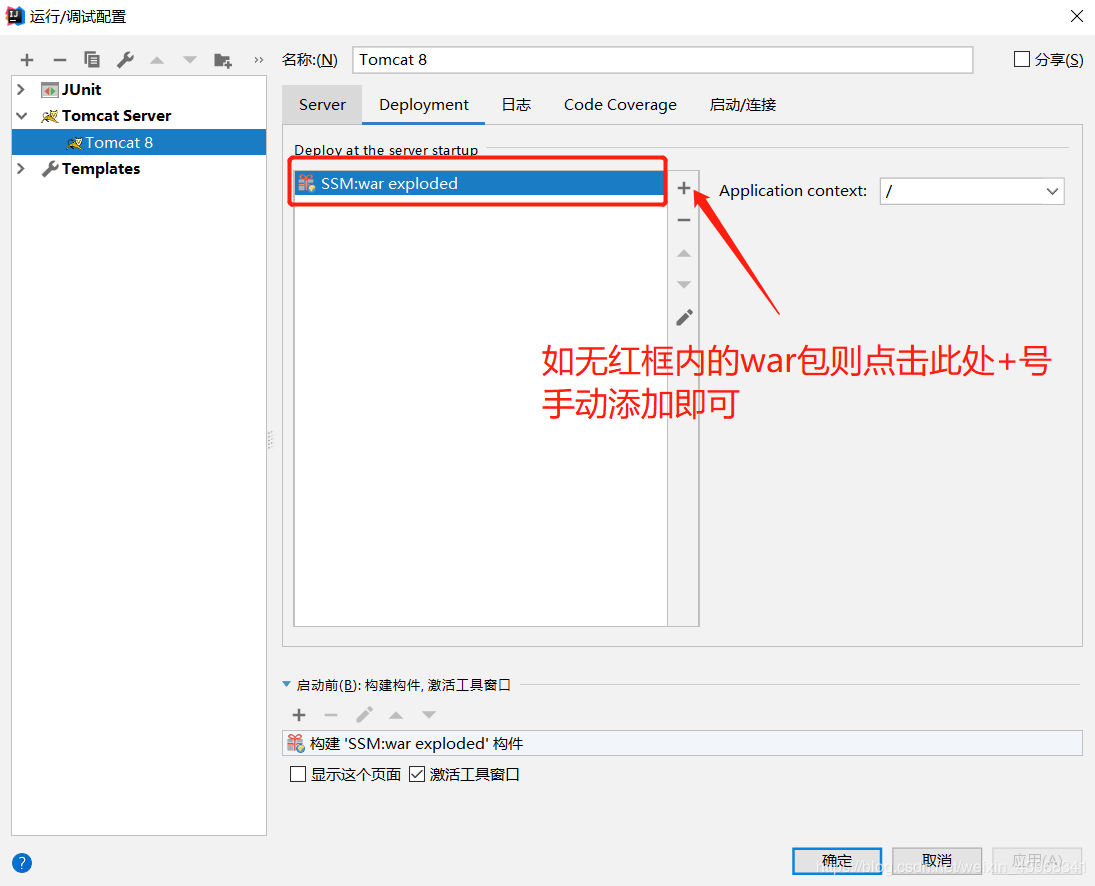

3.11 配置Tomcat

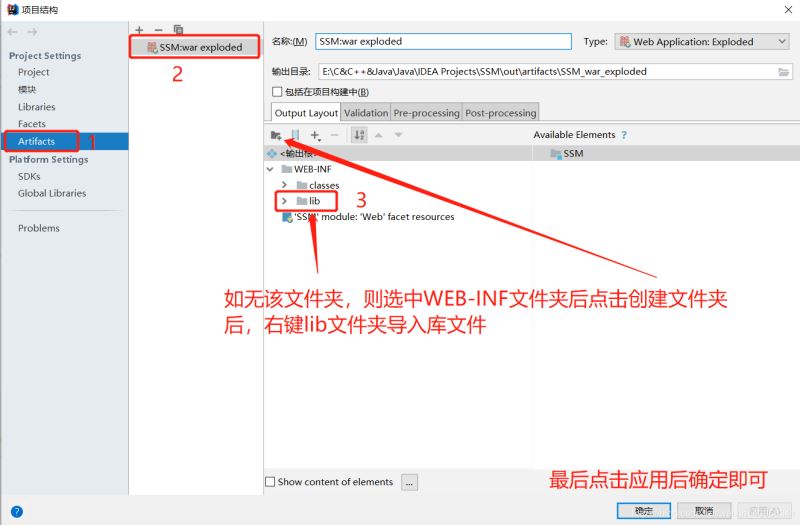

3.12 檢查項目結構（左上角 文件 -> 項目結構）

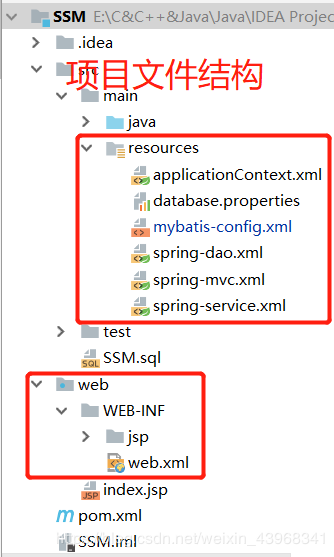

3.13 最后的項目文件結構
到了這里，框架已經搭建完成
4 接口對應的Mapper.xml<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE mapper PUBLIC '-//mybatis.org//DTD Mapper 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-mapper.dtd'><!--綁定對應的接口--><mapper namespace='com.dao.Mapper'> <!--此處寫對應的SQL操作--></mapper>5 功能添加步驟 先編寫實體類 dao層：編寫接口，接口對應mapper.xml（建議同名） service層：編寫接口，編寫接口實現類（創建dao層對象，返回調用dao層的操作） controller層：負責具體的業務模塊流程的控制，在此層要調用service層的接口來控制業務流程 編寫相應的jsp文件6 建議
框架搭建完成后應寫個簡單的功能測試框架環境有無問題
7 SSM框架項目文件
http://xiazai.jb51.net/202005/yuanma/ssm_kuangjia_jb51.rar
總結
到此這篇關于使用IDEA搭建SSM框架的詳細教程 spring + springMVC +MyBatis的文章就介紹到這了,更多相關IDEA搭建SSM框架內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
