springboot+thymeleaf+druid+mybatis 多模塊實現用戶登錄功能

瀏覽：3日期：2023-05-06 08:50:15

項目代碼：https://github.com/bruceq/supermarket

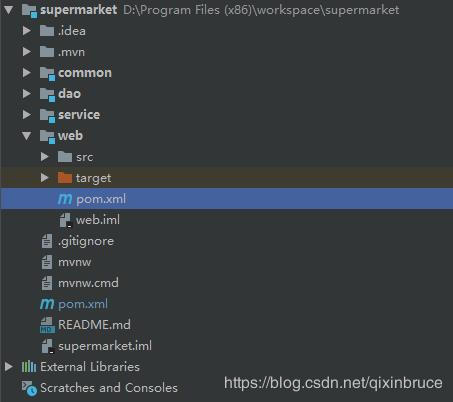

項目結構：

依賴關系：

common:公共層，無依賴

dao:數據層，依賴common

service：服務層，依賴dao、common

web：應用層，依賴dao、common、service

注：啟動類在web層中

父依賴pom

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <modules> <module>web</module> <module>dao</module> <module>service</module> <module>common</module> </modules> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.0.5.RELEASE</version>  <relativePath/>  </parent> <groupId>com.loan</groupId> <artifactId>supermarket</artifactId> <version>0.0.1-SNAPSHOT</version> <name>supermarket</name> <packaging>pom</packaging> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <optional>true</optional> <scope>runtime</scope> </dependency>  <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-api</artifactId> </dependency>  <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>1.3.1</version> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency>  <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> </dependency>  <dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency>  <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper</artifactId> <version>5.1.2</version> </dependency>  <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> <version>3.4</version> </dependency>  <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-collections4</artifactId> <version>4.2</version> </dependency>  <dependency> <groupId>com.alibaba</groupId> <artifactId>fastjson</artifactId> <version>1.2.54</version> </dependency>  <dependency> <groupId>com.github.penggle</groupId> <artifactId>kaptcha</artifactId> <version>2.3.2</version> </dependency> </dependencies> </project>

web層pom依賴：

application.properties配置：

## 數據源配置spring.datasource.url=jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=falsespring.datasource.username=rootspring.datasource.password=spring.datasource.driver-class-name=com.mysql.jdbc.Driver # 初始化時建立物理連接的個數spring.datasource.druid.initial-size=5# 最大連接池數量spring.datasource.druid.max-active=30# 最小連接池數量spring.datasource.druid.min-idle=5# 獲取連接時最大等待時間，單位毫秒spring.datasource.druid.max-wait=60000# 配置間隔多久才進行一次檢測，檢測需要關閉的空閑連接，單位是毫秒spring.datasource.druid.time-between-eviction-runs-millis=60000# 連接保持空閑而不被驅逐的最小時間spring.datasource.druid.min-evictable-idle-time-millis=300000# 用來檢測連接是否有效的sql，要求是一個查詢語句spring.datasource.druid.validation-query=SELECT 1 FROM DUAL# 建議配置為true，不影響性能，并且保證安全性。申請連接的時候檢測，如果空閑時間大于timeBetweenEvictionRunsMillis，執行validationQuery檢測連接是否有效。spring.datasource.druid.test-while-idle=true# 申請連接時執行validationQuery檢測連接是否有效，做了這個配置會降低性能。spring.datasource.druid.test-on-borrow=false# 歸還連接時執行validationQuery檢測連接是否有效，做了這個配置會降低性能。spring.datasource.druid.test-on-return=false# 是否緩存preparedStatement，也就是PSCache。PSCache對支持游標的數據庫性能提升巨大，比如說oracle。在mysql下建議關閉。spring.datasource.druid.pool-prepared-statements=true# 要啟用PSCache，必須配置大于0，當大于0時，poolPreparedStatements自動觸發修改為true。spring.datasource.druid.max-pool-prepared-statement-per-connection-size=50# 配置監控統計攔截的filters，去掉后監控界面sql無法統計spring.datasource.druid.filters=stat,wall# 通過connectProperties屬性來打開mergeSql功能；慢SQL記錄spring.datasource.druid.connection-properties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500# 合并多個DruidDataSource的監控數據spring.datasource.druid.use-global-data-source-stat=true # druid連接池監控spring.datasource.druid.stat-view-servlet.login-username=adminspring.datasource.druid.stat-view-servlet.login-password=123# 排除一些靜態資源，以提高效率spring.datasource.druid.web-stat-filter.exclusions=*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/* # 端口配置server.port=8000 # mybatismybatis.type-aliases-package=com.loan.supermarket.mappermybatis.mapper-locations=classpath:mapping/*.xmlmybatis.configuration.map-underscore-to-camel-case=true # THYMELEAF (ThymeleafAutoConfiguration)spring.thymeleaf.prefix=classpath:/templates/spring.thymeleaf.suffix=.htmlspring.thymeleaf.mode=HTML5spring.thymeleaf.encoding=UTF-8# ;charset=<encoding> is added#spring.thymeleaf.content-type=text/html# set to false for hot refreshspring.thymeleaf.cache=false

前42行是對druid的基礎配置，包括基礎數據源配置，以及druid的基礎參數；

47~50行是mybatis中對于mapper的xml的配置，便于項目啟動后掃描到xml的相關文件，xml內寫的是項目相關的sql。

45行指默認項目啟動默認端口為8000。

52行~60行是thymeleaf的基礎配置，thymeleaf是一種常見的模板引擎，相當于jsp這樣的前臺代碼。

為了實現簡單的登錄功能，我們在controller中定義一些接口方法：

package com.loan.supermarket.web.controller; import com.google.code.kaptcha.impl.DefaultKaptcha;import com.loan.supermarket.mapper.JsonObject;import com.loan.supermarket.mapper.User;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.ui.Model;import org.springframework.web.bind.annotation.PostMapping;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.ResponseBody;import org.springframework.web.servlet.ModelAndView;import org.thymeleaf.util.StringUtils; import javax.imageio.ImageIO;import javax.servlet.ServletOutputStream;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import javax.servlet.http.HttpSession;import java.awt.image.BufferedImage;import java.io.ByteArrayOutputStream;import java.util.ArrayList;import java.util.Date; @Controllerpublic class TemplateController { @RequestMapping('/index') public String index(Model model) { User user = new User(); user.setName('張三'); user.setId(1L); user.setTelephone('123456789'); user.setPassword('@#$%^&*()'); user.setRegisterTime(new Date()); user.setPopedom(1); User user1 = new User(); user1.setName('李四'); user1.setId(2L); user1.setTelephone('2222222'); user1.setPassword('最近是南風天'); user1.setRegisterTime(new Date()); user1.setPopedom(1); User user2 = new User(); user2.setName('王五'); user2.setId(3L); user2.setTelephone('33333333333'); user2.setPassword('妖姬'); user2.setRegisterTime(new Date()); user2.setPopedom(1); User user3 = new User(); user3.setName('趙六'); user3.setId(4L); user3.setTelephone('33333333333'); user3.setPassword('過河卒'); user3.setRegisterTime(new Date()); user3.setPopedom(0); ArrayList<User> list = new ArrayList<User>(); list.add(user); list.add(user1); list.add(user2); list.add(user3); model.addAttribute('users', list); return 'index'; } @RequestMapping('/login') public String login1() { return 'login'; } @PostMapping('/user_login') @ResponseBody public JsonObject<String> login(String username, String password, HttpServletRequest request) { JsonObject<String> obj = new JsonObject<String>(); HttpSession session = request.getSession(); if (!StringUtils.isEmpty(username) && !StringUtils.isEmpty(password)) { obj.setCode('0'); User user = new User(); user.setName(username); session.setAttribute('loginUser', user); return obj; } obj.setCode('1'); obj.setMessage('用戶名或密碼錯誤'); return obj; } @Autowired private DefaultKaptcha captchaProducer; /** * 獲取驗證碼的請求路徑 * @param httpServletRequest * @param httpServletResponse * @throws Exception */ @RequestMapping('/defaultKaptcha') public void defaultKaptcha(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse) throws Exception{ byte[] captchaChallengeAsJpeg = null; ByteArrayOutputStream jpegOutputStream = new ByteArrayOutputStream(); try { //生產驗證碼字符串并保存到session中 String createText = captchaProducer.createText(); httpServletRequest.getSession().setAttribute('vrifyCode', createText); //使用生產的驗證碼字符串返回一個BufferedImage對象并轉為byte寫入到byte數組中 BufferedImage challenge = captchaProducer.createImage(createText); ImageIO.write(challenge, 'jpg', jpegOutputStream); } catch (IllegalArgumentException e) { httpServletResponse.sendError(HttpServletResponse.SC_NOT_FOUND); return; } //定義response輸出類型為image/jpeg類型，使用response輸出流輸出圖片的byte數組 captchaChallengeAsJpeg = jpegOutputStream.toByteArray(); httpServletResponse.setHeader('Cache-Control', 'no-store'); httpServletResponse.setHeader('Pragma', 'no-cache'); httpServletResponse.setDateHeader('Expires', 0); httpServletResponse.setContentType('image/jpeg'); ServletOutputStream responseOutputStream =httpServletResponse.getOutputStream(); responseOutputStream.write(captchaChallengeAsJpeg); responseOutputStream.flush(); responseOutputStream.close(); } /** * 驗證的方法 * @param httpServletRequest * @param httpServletResponse * @return */ @RequestMapping('/imgvrifyControllerDefaultKaptcha') public ModelAndView imgvrifyControllerDefaultKaptcha(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse){ ModelAndView andView = new ModelAndView(); String captchaId = (String) httpServletRequest.getSession().getAttribute('vrifyCode'); String parameter = httpServletRequest.getParameter('vrifyCode'); System.out.println('Session vrifyCode '+captchaId+' form vrifyCode '+parameter); if (!captchaId.equals(parameter)) { andView.addObject('info', '錯誤的驗證碼'); andView.setViewName('index'); } else { andView.addObject('info', '登錄成功'); andView.setViewName('success'); } return andView; }}

搭配前臺的代碼一起分析：

<!DOCTYPE html><html xmlns:th='http://www.thymeleaf.org'><head> <title>顯示學生信息</title> <meta charset='UTF-8'/> <meta name='viewport' content='width=device-width, initial-scale=1'/> <link th:href='http://www.hdgsjgj.cn/bcjs/@{/bootstrap/bootstrap.css}' href='http://www.hdgsjgj.cn/static/bootstrap/bootstrap.css' rel='stylesheet'/> <link th:href='http://www.hdgsjgj.cn/bcjs/@{/bootstrap/bootstrap-theme.css}' href='http://www.hdgsjgj.cn/static/bootstrap/bootstrap-theme.css' rel='stylesheet'/> <script th:src='http://www.hdgsjgj.cn/bcjs/@{/js/jquery.min.js}' src='http://www.hdgsjgj.cn/static/js/jquery.min.js'></script> <script th:src='http://www.hdgsjgj.cn/bcjs/@{/js/bootstrap.min.js}' src='http://www.hdgsjgj.cn/static/js/bootstrap.min.js'></script> <script type='text/javascript'> $(function () { $('#submit').click(function () {$.post('/user_login', $('#loginForm').serialize(), function (data) { if (data.code == '0') { window.location.href = 'http://www.hdgsjgj.cn/index'; } else if (data.code == '1') { $('#tick').text(data.message).css('color', 'red'); }}) }); }); </script></head><body><div class='container'> <div class='row'> <form id='loginForm'> <div class='col-md-4'><div class='panel panel-primary'> <div class='panel-heading text-center'> <span class='panel-title'>學生信息</span> </div> <div class='form-group'> <label for='username' style='color: red'>賬 號:</label> <div class='col-sm-8'> <input type='text' name='username' placeholder='請輸入賬號'> </div> </div> <div class='form-group'> <label for='password' style='color: red'>密 碼:</label> <div class='col-sm-8'> <input type='password' name='password' placeholder='請輸入密碼'> </div> </div> <div class='form-group'> <label id='tick'> </label> </div> <div class='form-group'> <form action='imgvrifyControllerDefaultKaptcha'> <div class='col-sm-8'><input type='text' name='vrifyCode' /> </div> <img alt='驗證碼' onclick='this.src=’defaultKaptcha?d=’+new Date()*1' src='http://www.hdgsjgj.cn/bcjs/defaultKaptcha'> </br> </form> </div> <div class='form-group'> <div class='col-sm-8'> <button type='button' class='btn btn-default'>登錄</button> </div> </div> <div class='panel-footer text-right'> <span class='panel-title'>大俠工作室@2108</span> </div></div> </div> </form> </div></div></body></html>

在項目啟動后，訪問http://localhost:8000/login，進入到登錄頁面，首先加載必要的css和js資源，在填寫好用戶名、密碼后，點擊登錄，會執行user_login的接口方法，簡單的對用戶進行校驗，即可進入首頁。

其次要說的是這個項目中，添加了驗證碼的功能，使用了kaptcha的依賴。在登錄界面中，增加了驗證碼的顯示，點擊驗證碼圖片后，可以切換驗證碼。

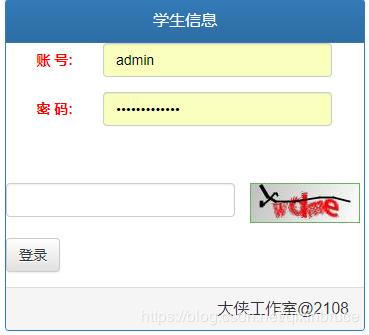

登錄界面

springboot+thymeleaf+druid+mybatis 多模塊實現用戶登錄功能

到此這篇關于springboot+thymeleaf+druid+mybatis 多模塊實現用戶登錄功能的文章就介紹到這了,更多相關springboot+thymeleaf+druid+mybatis 多模塊登錄內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
