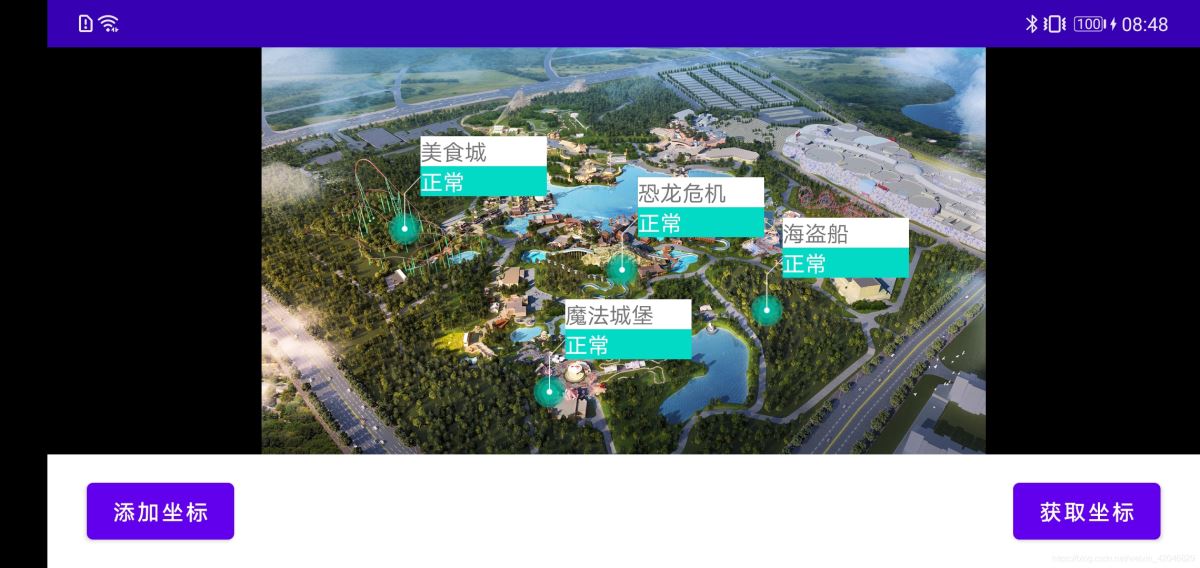

最近項目要求實現一個在自定義地圖圖片上添加坐標信息的功能，類似于在圖片做標注的功能。如下圖所示。坐標的位置是相對于圖片寬高的百分比

改功能主要分為三個視圖，1.繼承FrameLayout作為父容器；2.添加一個鋪滿父布局的ImageView顯示地圖圖片；3.動態(tài)添加自定義坐標視圖

1. 自定義坐標視圖

<?xml version='1.0' encoding='utf-8'?><androidx.constraintlayout.widget.ConstraintLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:app='http://schemas.android.com/apk/res-auto' android:layout_width='wrap_content' android:layout_height='wrap_content'> <ImageViewandroid: android:layout_width='20dp'android:layout_height='wrap_content'android:layout_marginTop='20dp'android:src='http://www.hdgsjgj.cn/bcjs/@mipmap/dot2'app:layout_constraintEnd_toStartOf='@+id/tv_sign_name'app:layout_constraintStart_toStartOf='parent'app:layout_constraintTop_toTopOf='parent' /> <TextViewandroid: android:layout_width='80dp'android:layout_height='wrap_content'android:background='@color/white'android:text='美食城'app:layout_constraintEnd_toEndOf='parent'app:layout_constraintTop_toTopOf='parent' /> <TextViewandroid: android:layout_width='80dp'android:layout_height='wrap_content'android:background='@color/teal_200'android:text='正常'android:textColor='@color/white'app:layout_constraintEnd_toEndOf='parent'app:layout_constraintStart_toStartOf='@+id/tv_sign_name'app:layout_constraintTop_toBottomOf='@+id/tv_sign_name' /></androidx.constraintlayout.widget.ConstraintLayout>

class SignView : ConstraintLayout { private val TAG = SignView::class.java.simpleName private var view: View private var signIv: ImageView private var signNameTv: TextView private var signStateTv: TextView constructor(context: Context) : super(context) constructor(context: Context, attrs: AttributeSet?) : super(context, attrs) constructor(context: Context, attrs: AttributeSet?, @AttrRes defStyleAttr: Int) : super(context,attrs,defStyleAttr ) init {view = LayoutInflater.from(context).inflate(R.layout.sign_view, this, true)signIv = view.findViewById(R.id.iv_sign)signNameTv = view.findViewById(R.id.tv_sign_name)signStateTv = view.findViewById(R.id.tv_sign_state) } /** * 設置坐標信息 * @param signBean SignBean */ fun setData(signBean: SignBean) {signNameTv.text = signBean.namesignStateTv.text = signBean.state } /** * 計算坐標圖標在整個視圖的偏移量 * @return IntArray */ fun getSignOffset(): IntArray {val w = MeasureSpec.makeMeasureSpec(0, MeasureSpec.UNSPECIFIED)val h = MeasureSpec.makeMeasureSpec(0, MeasureSpec.UNSPECIFIED)signIv.measure(w, h)val offset = IntArray(2)val signImageWidth = signIv.measuredWidthval signImageHeight = signIv.measuredHeightoffset[0] = signImageWidth / 2offset[1] = 20 + signImageHeight - offset[0]Log.d(TAG, 'getSignOffset: x:${offset[0]}, y:${offset[1]}')return offset }}

自定義的坐標視圖是一個組合的控件，主要是要計算出坐標圖片在整個控件的偏移量

2. 父容器

class MapView : FrameLayout { private val TAG = MapView::class.java.simpleName //地圖圖片 private var mapImage = ImageView(context) private var mapWidth = 0 private var mapHeight = 0 private var mapLeft = 0 private var mapTop = 0 private var signBeanList = listOf<SignBean>() private var signOffsetList = mutableListOf<IntArray>() private var signViewList = mutableListOf<SignView>() private var capturedViewIndex = 0 private val mDragger: ViewDragHelper =ViewDragHelper.create(this, 1.0f, object : ViewDragHelper.Callback() { override fun tryCaptureView(child: View, pointerId: Int): Boolean {return child != mapImage } override fun onViewCaptured(capturedChild: View, activePointerId: Int) {signViewList.forEachIndexed { index, signView -> if (signView == capturedChild) {capturedViewIndex = indexreturn@forEachIndexed }} } override fun onViewPositionChanged(changedView: View,left: Int,top: Int,dx: Int,dy: Int ) {signOffsetList[capturedViewIndex][0] += dxsignOffsetList[capturedViewIndex][1] += dy } override fun clampViewPositionHorizontal(child: View, left: Int, dx: Int): Int {val move = if (left <= mapLeft) mapLeftelse if (left >= mapWidth + mapLeft) mapWidth + mapLeftelse leftreturn move } override fun clampViewPositionVertical(child: View, top: Int, dy: Int): Int {val move = if (top <= mapTop) mapTopelse if (top >= mapHeight + mapTop) mapHeight + mapLeftelse topreturn move }}) constructor(context: Context) : super(context) constructor(context: Context, attrs: AttributeSet?) : this(context, attrs, 0) constructor(context: Context, attrs: AttributeSet?, @AttrRes defStyleAttr: Int) : this(context,attrs,defStyleAttr,0 ) constructor(context: Context, attrs: AttributeSet?,@AttrRes defStyleAttr: Int, @StyleRes defStyleRes: Int ) : super(context, attrs, defStyleAttr, defStyleRes) /** * 添加地圖圖片 * @param resId Int */ fun setMapImage(@DrawableRes resId: Int) {removeAllViews()mapImage.setImageResource(resId)addView(mapImage) } /** * 設置坐標列表 * @param list List<SignBean> */ fun setSignData(list: List<SignBean>) {val mapOffset = getBitmapOffset(mapImage, true)mapLeft = mapOffset[0]mapTop = mapOffset[1]mapWidth = mapImage.width - mapLeft * 2mapHeight = mapImage.height - mapTop * 2var signOffset = IntArray(2)var boolean = trueLog.d(TAG, 'mapWidth:$mapWidth, mapHeight:$mapHeight, mapLeft:$mapLeft, mapTop:$mapTop')signBeanList = listremoveViews(1, childCount - 1)signViewList.clear()signOffsetList.clear()list.forEach { val signView = SignView(context).apply {setData(it) } // 只需要計算一次 if (boolean) {boolean = falsesignOffset = signView.getSignOffset() } signView.layoutParams = getParams(it, signOffset) addView(signView) signViewList.add(signView) signOffsetList.add(intArrayOf((it.x * mapWidth).toInt(), (it.y * mapHeight).toInt()))} } /** * 獲取移動后的坐標信息 * @return List<SignBean> */ fun getMoveSignData(): List<SignBean> {val data = mutableListOf<SignBean>()signOffsetList.forEachIndexed { index, ints -> val signBean = signBeanList[index] data.add(SignBean( signBean.name, signBean.state, ints[0] / mapWidth.toFloat(), ints[1] / mapHeight.toFloat()) )}return data } /** * 計算坐標位置 * @param signBean SignBean * @return LayoutParams */ private fun getParams(signBean: SignBean, signOffset: IntArray): LayoutParams {val params = LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT)params.setMargins( (signBean.x * mapWidth + mapLeft - signOffset[0]).toInt(), (signBean.y * mapHeight + mapTop - signOffset[1]).toInt(), 0, 0)return params } /** * 計算圖像在ImageView的位移量 * @param img ImageView * @param includeLayout Boolean * @return IntArray? */ private fun getBitmapOffset(img: ImageView, includeLayout: Boolean): IntArray {val offset = IntArray(2)val values = FloatArray(9)val m: Matrix = img.imageMatrixm.getValues(values)offset[0] = values[2].toInt()offset[1] = values[5].toInt()if (includeLayout) { val lp = img.layoutParams as MarginLayoutParams offset[0] += img.paddingLeft + lp.leftMargin offset[1] += img.paddingTop + lp.topMargin}return offset } override fun onInterceptTouchEvent(event: MotionEvent): Boolean {return mDragger.shouldInterceptTouchEvent(event) } override fun onTouchEvent(event: MotionEvent): Boolean {mDragger.processTouchEvent(event)return true }}

父容器中要注意的是由于圖片不拉伸，所以會出現圖片不會完成鋪滿ImageView，會有黑邊。所以要計算出實際圖片顯示的大小。

3. Activity

<?xml version='1.0' encoding='utf-8'?><androidx.constraintlayout.widget.ConstraintLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:app='http://schemas.android.com/apk/res-auto' xmlns:tools='http://schemas.android.com/tools' android:layout_width='match_parent' android:layout_height='match_parent' tools:context='.MainActivity'> <com.itc.floatparade.MapViewandroid: android:layout_width='0dp'android:layout_height='0dp'android:layout_marginBottom='12dp'android:background='@color/black'app:layout_constraintBottom_toTopOf='@+id/tv_add_sign'app:layout_constraintEnd_toEndOf='parent'app:layout_constraintStart_toStartOf='parent'app:layout_constraintTop_toTopOf='parent' /> <Buttonandroid: android:layout_width='wrap_content'android:layout_height='wrap_content'android:layout_marginStart='25dp'android:layout_marginBottom='12dp'android:text='添加坐標'app:layout_constraintBottom_toBottomOf='parent'app:layout_constraintStart_toStartOf='parent' /> <Buttonandroid: android:layout_width='wrap_content'android:layout_height='wrap_content'android:layout_marginEnd='25dp'android:text='獲取坐標'app:layout_constraintBottom_toBottomOf='parent'app:layout_constraintEnd_toEndOf='parent'app:layout_constraintTop_toBottomOf='@+id/map' /> <TextViewandroid: android:layout_width='0dp'android:layout_height='wrap_content'android:layout_marginStart='8dp'android:layout_marginEnd='8dp'android:text=''app:layout_constraintBottom_toBottomOf='parent'app:layout_constraintEnd_toStartOf='@+id/btn_get_sign'app:layout_constraintStart_toEndOf='@+id/tv_add_sign'app:layout_constraintTop_toBottomOf='@+id/map' /></androidx.constraintlayout.widget.ConstraintLayout>

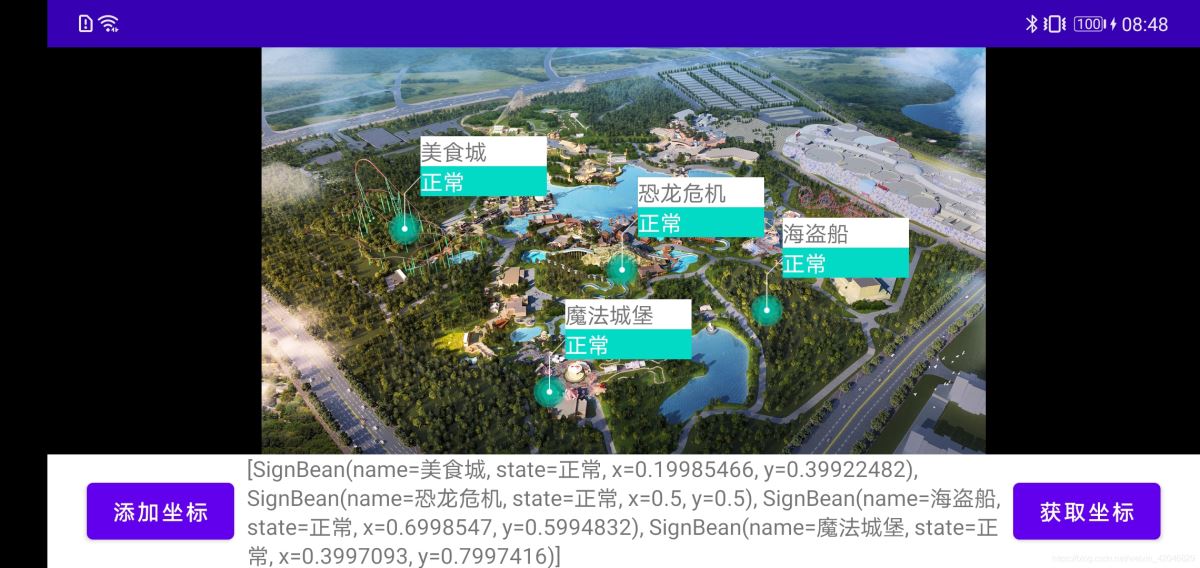

class MainActivity : AppCompatActivity() { private lateinit var binding: ActivityMainBinding override fun onCreate(savedInstanceState: Bundle?) {super.onCreate(savedInstanceState)binding = ActivityMainBinding.inflate(layoutInflater)setContentView(binding.root)binding.map.setMapImage(R.mipmap.map)binding.tvAddSign.setOnClickListener { val list = mutableListOf<SignBean>() list.add(SignBean('美食城', '正常', 0.2f, 0.4f)) list.add(SignBean('恐龍危機', '正常', 0.5f, 0.5f)) list.add(SignBean('海盜船', '正常', 0.7f, 0.6f)) list.add(SignBean('魔法城堡', '正常', 0.4f, 0.8f)) binding.map.setSignData(list)}binding.btnGetSign.setOnClickListener { val list = binding.map.getMoveSignData() binding.tvSignList.text = list.toString()} }}

完整代碼：https://github.com/MattLjp/FloatParade
